The Bengali regulator was removed, and a new Chinese regulator was installed.

How are you all? I hope everyone is well and healthy by the grace of God. Today I will show you what happened and how to repair the line inside a charger fan.

Edited with Canva.

A few days ago, I made an IPS from a local shopkeeper in my area and bought a charging machine with a dry-acid 95-ampere battery and a transformer and a fan. So after a few days, that person was telling me that the fan was not working properly, so I brought the fan to my shop and observed what the problem was.

Step -01

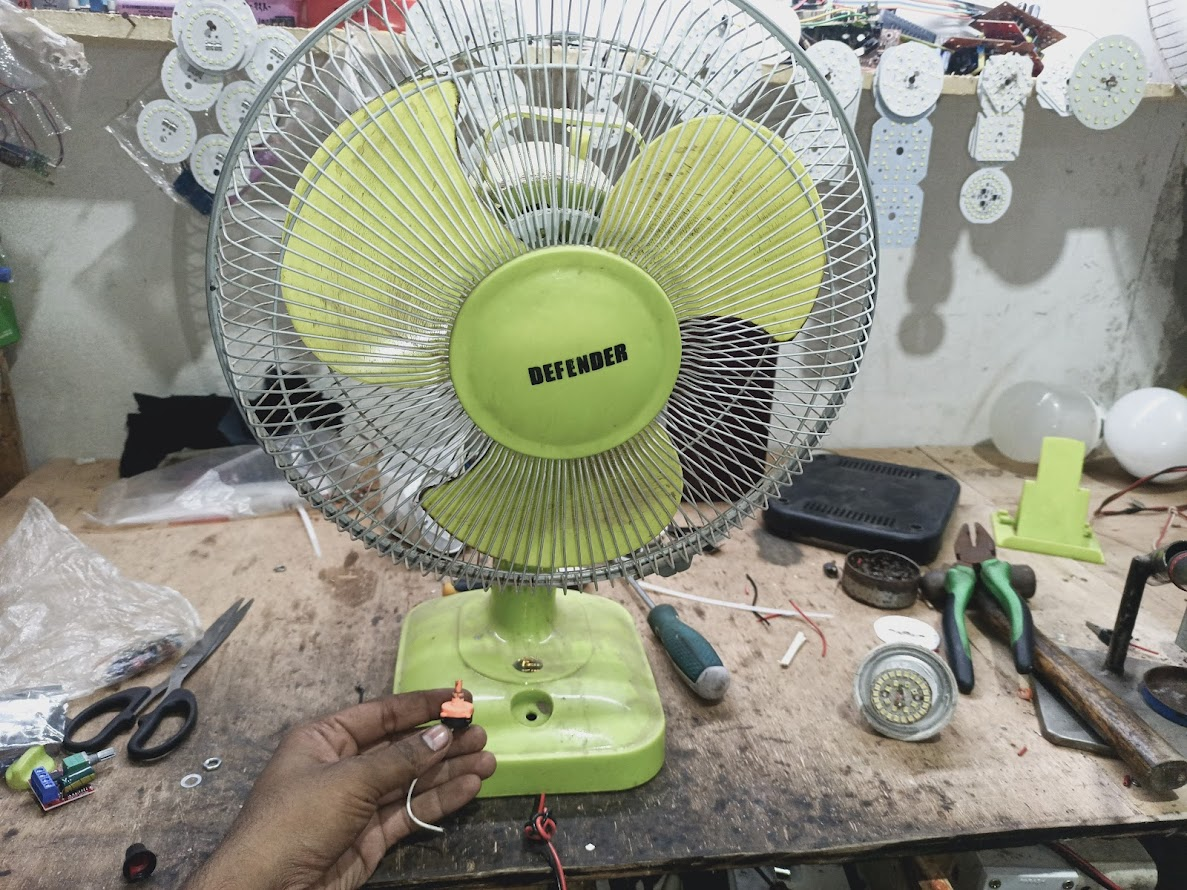

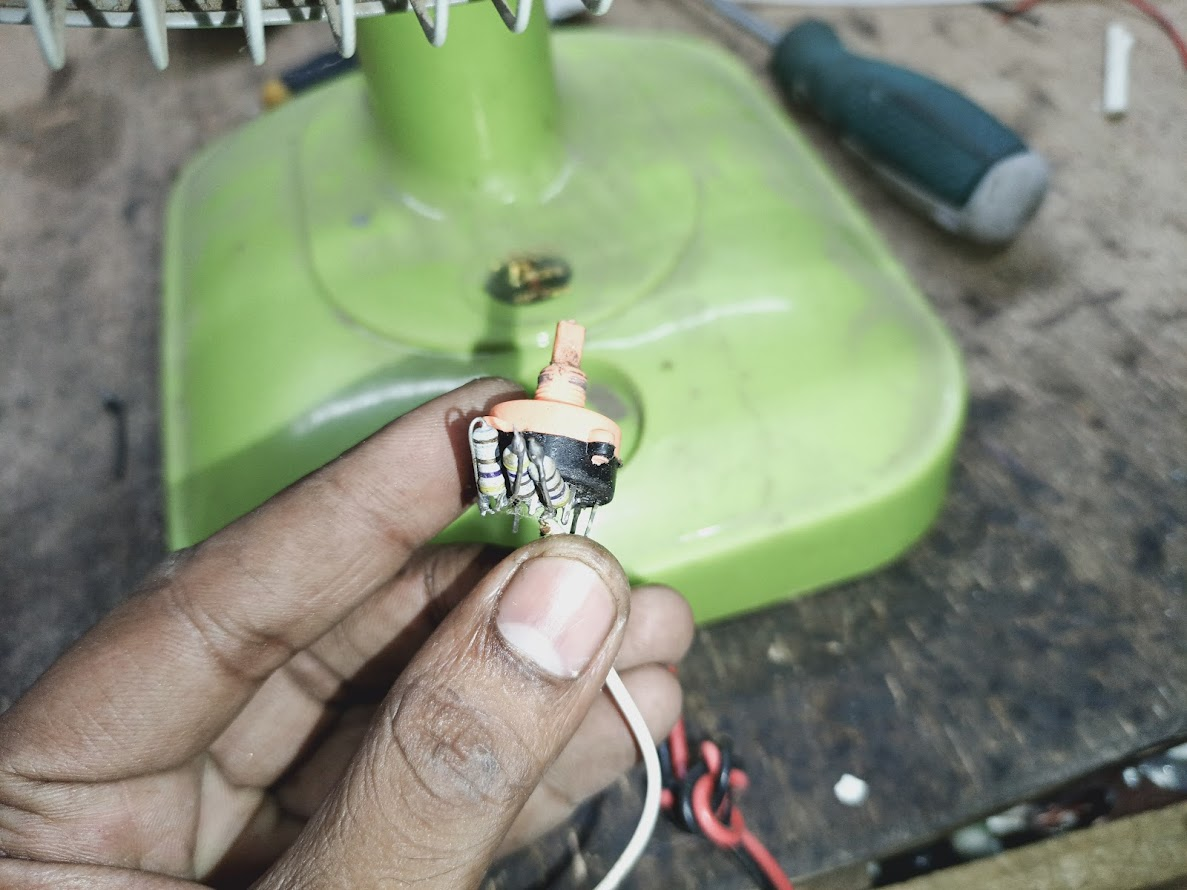

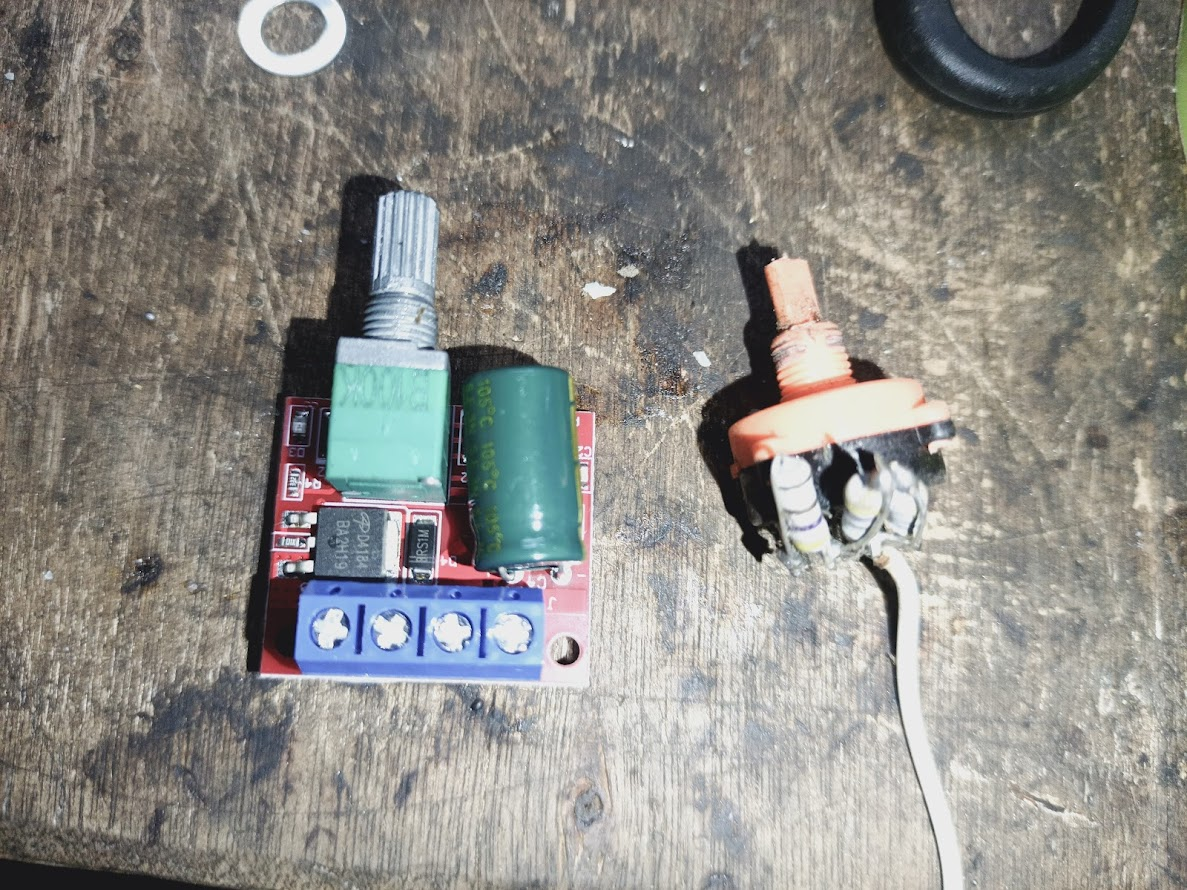

First, I brought the fan to my shop and opened it, and here they gave me a voltage regulator which is made by our Bangladeshi local with very low-cost resistance which is not suitable for increasing or decreasing a fan at all; it is made only to show the customer, which is very poor quality.

Step -02

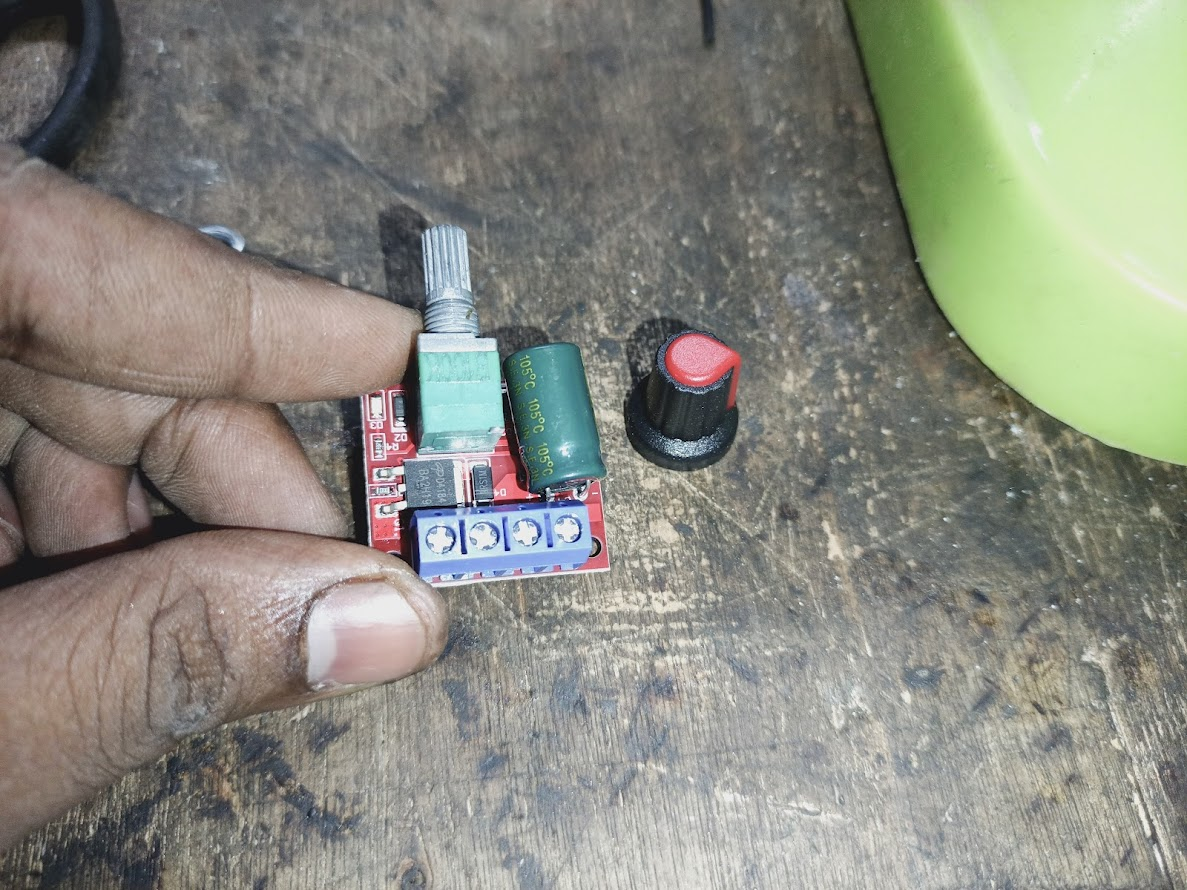

I bought a Chinese voltage regulator here which is sold in the market for 120 to 150 taka. This is at least a good module that can control any 12-volt to 06-volt fan very nicely.

Step -03

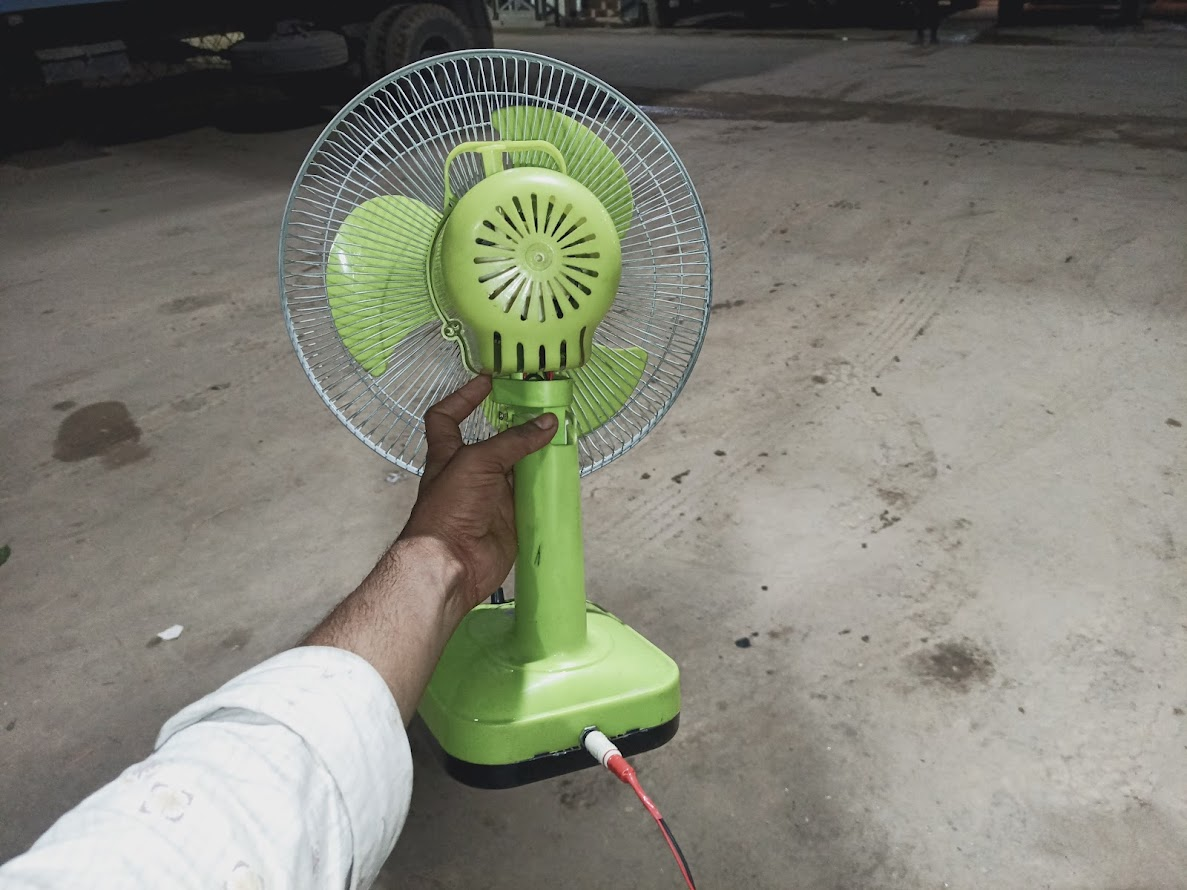

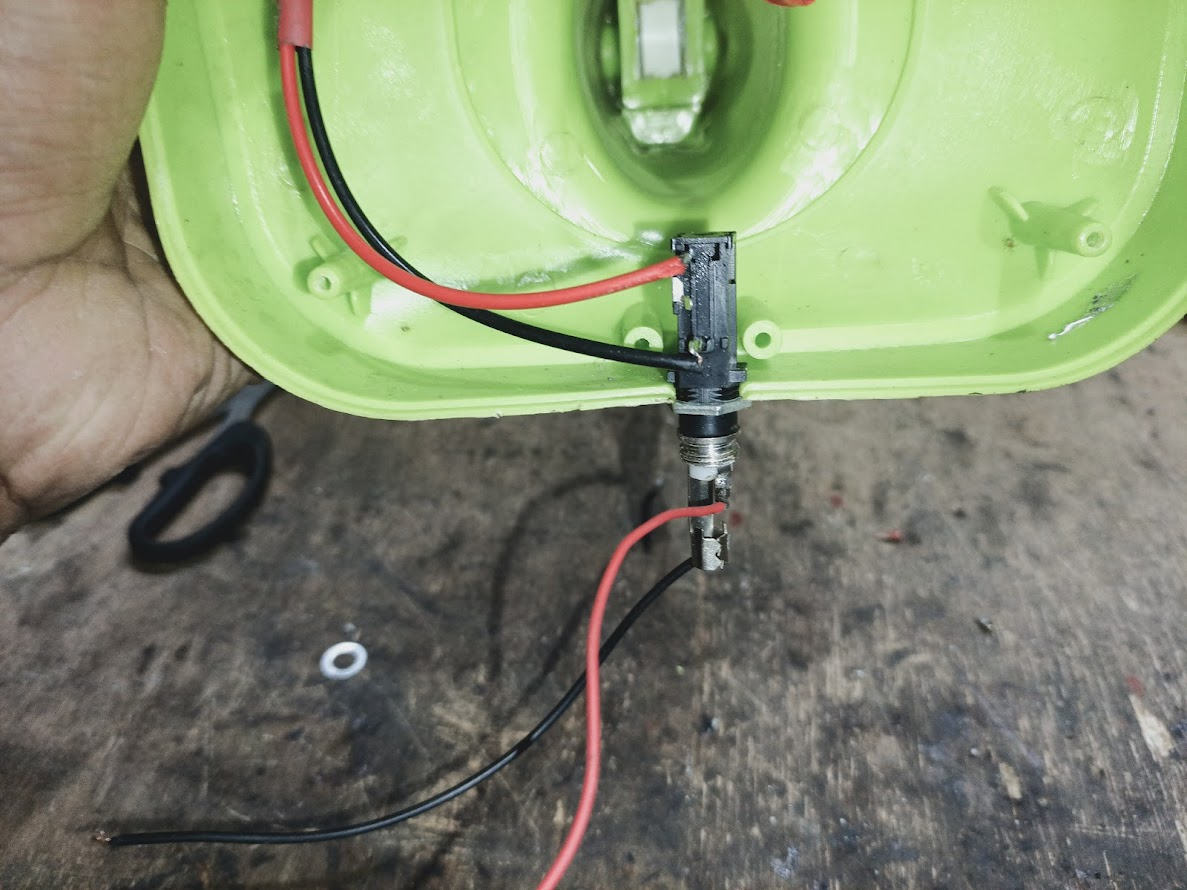

Now you can see that there is no male-to-female connection inside this fan; instead of the 12-volt input voltage, a direct wire has been inserted here through which the fan is powered, and the person who uses this fan has difficulty handling it, which is why I will attach a male-to-female microphone jack here, as you can see in the picture.

Step -04

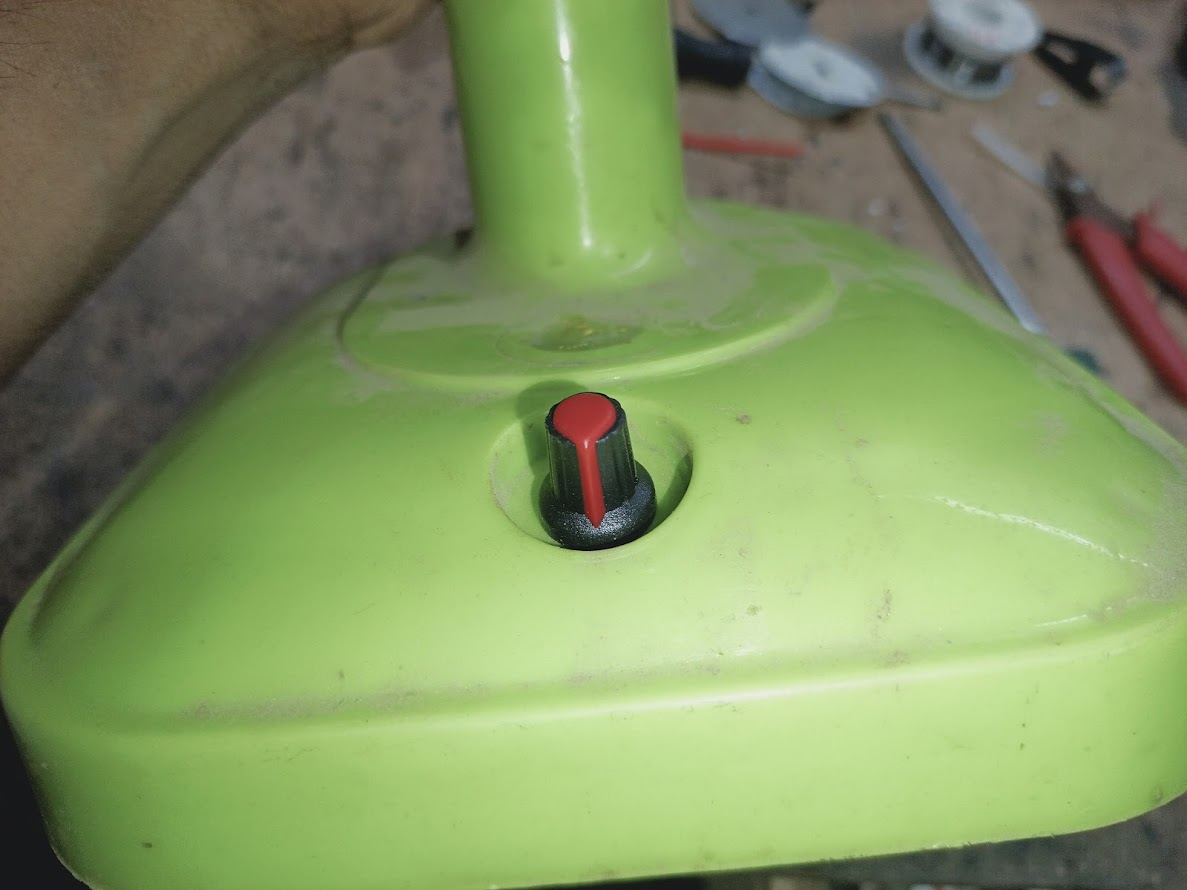

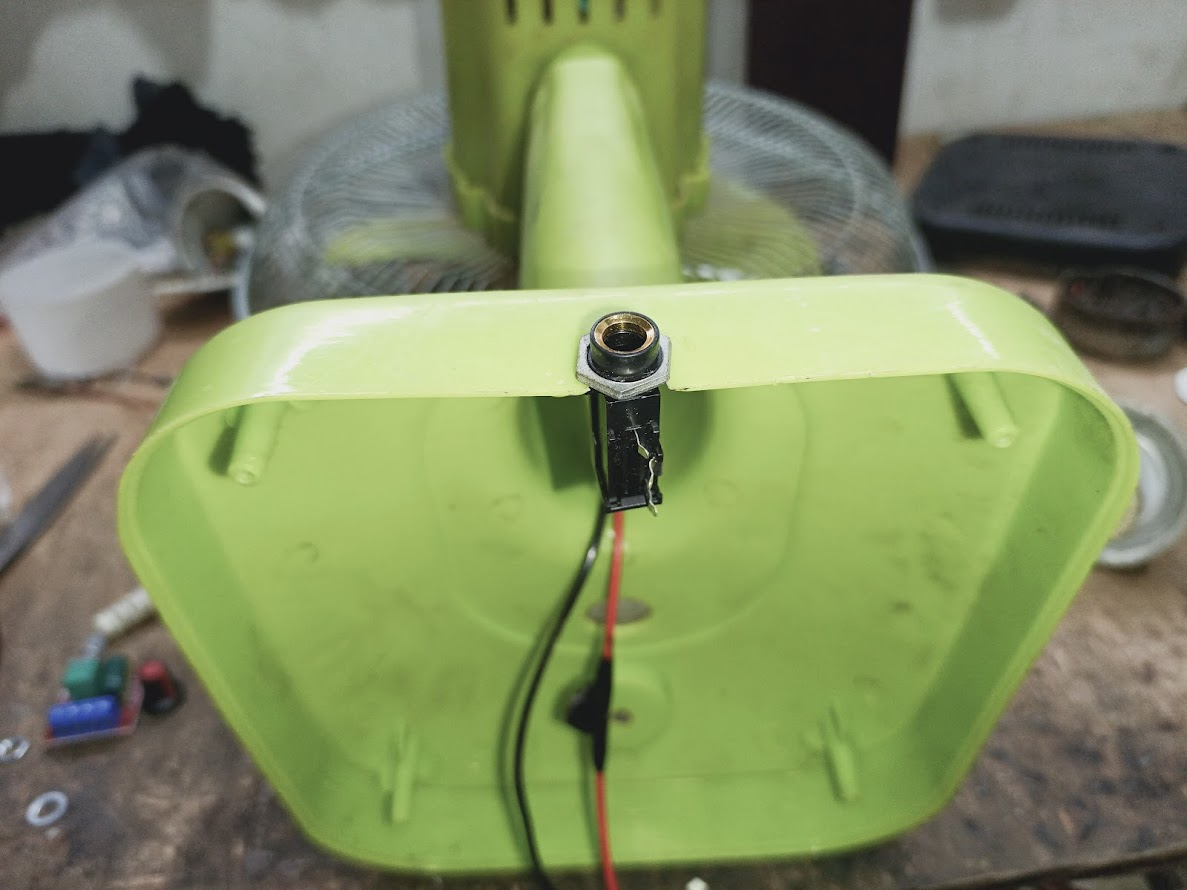

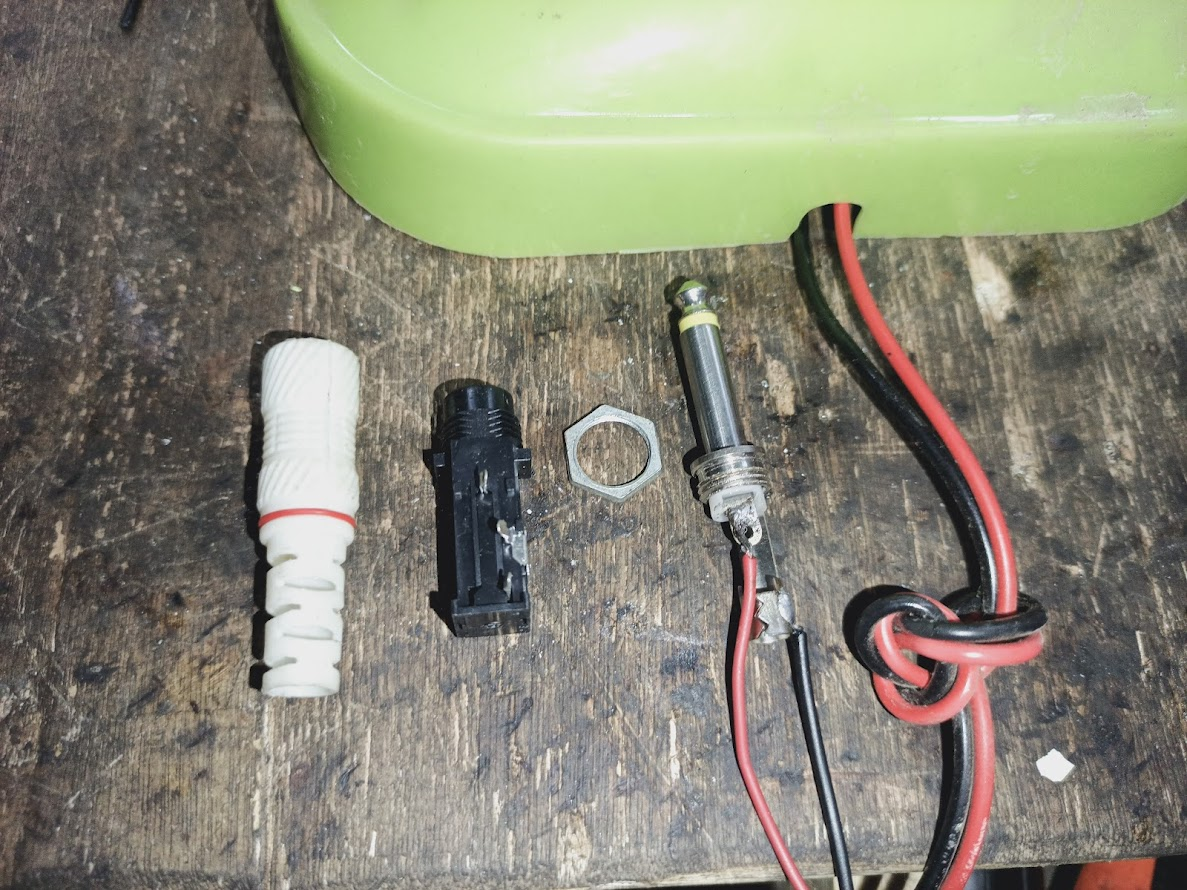

I have attached the microphone male-to-female jack here very nicely, as you can see. Then you can see that I have made a hole in the place of the previous volume and attached a new volume that will control this fan, and I do not have to make any new holes because of the previous holes.

Step -05

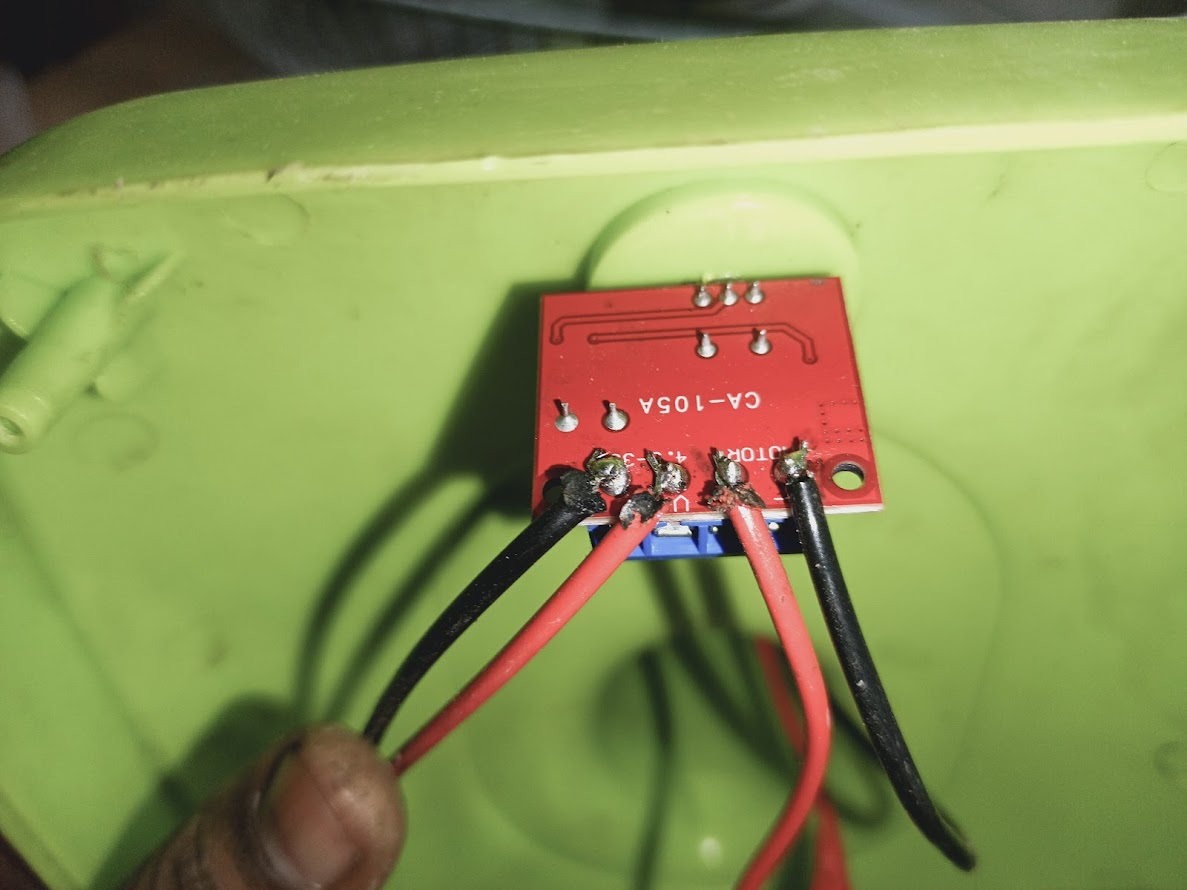

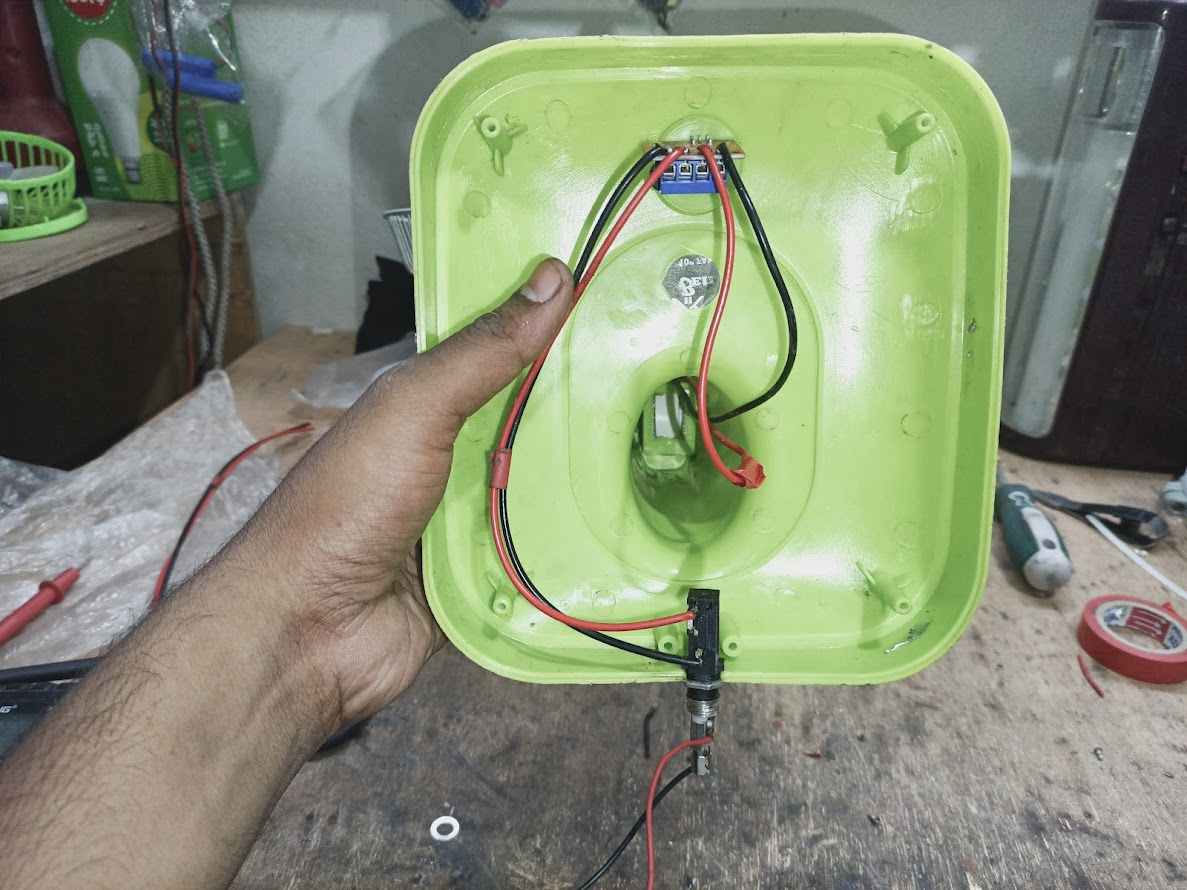

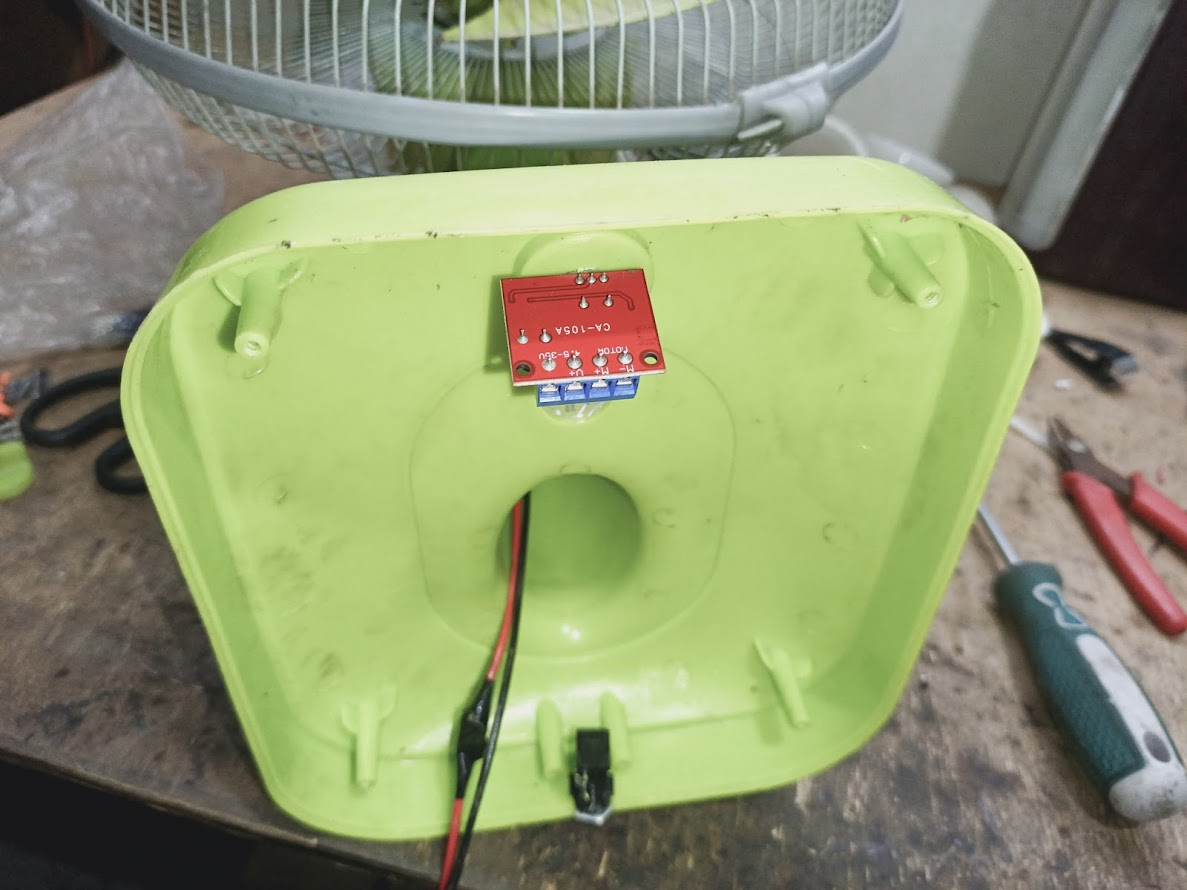

Now you can see that I have attached the voltage regulator and attached its screws and attached the plastic that is on top. And I have connected the two 12-volt input wires to the voltage regulator and connected the two wires of the motor output.

Step -06

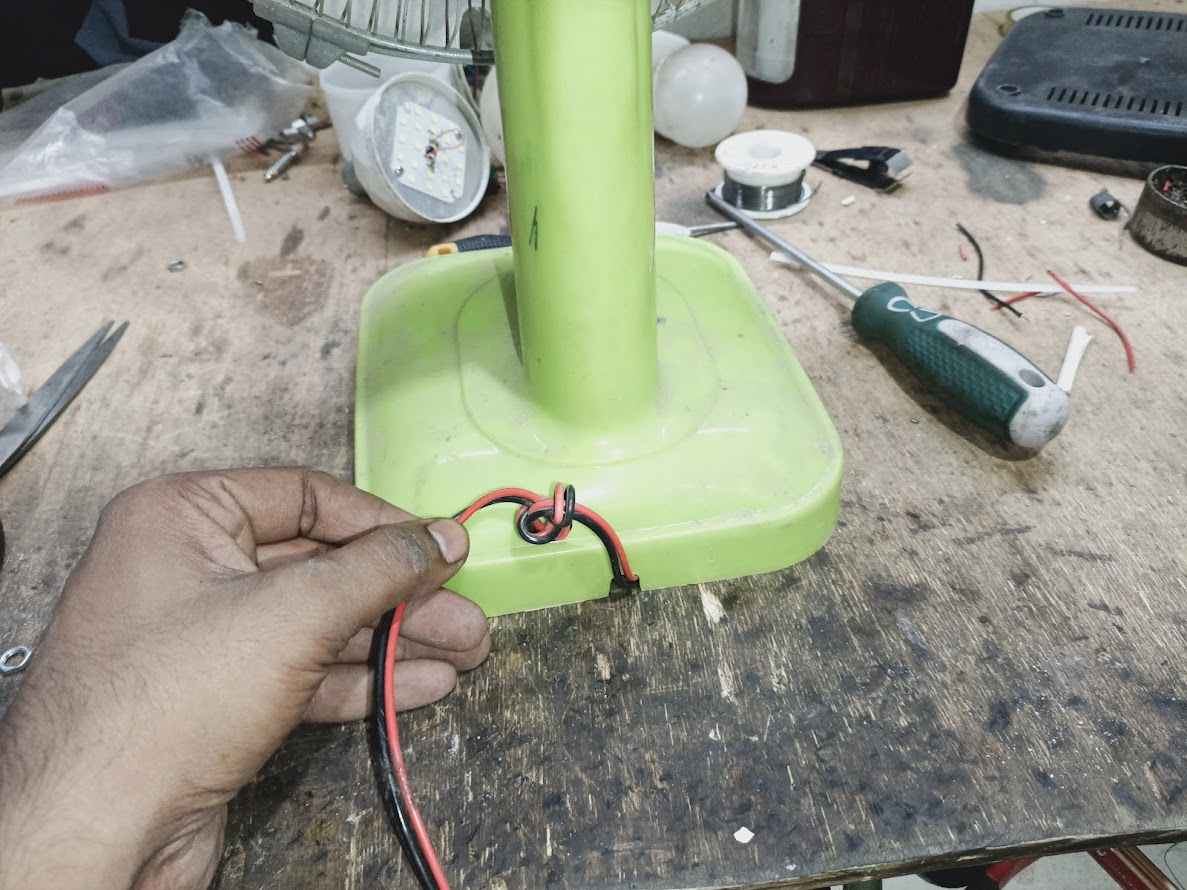

Now you can see that I have connected the 12-volt input to the male-to-female jack where I was sitting, and I have connected the output to the 12-volt input of the voltage controller.

Step -07

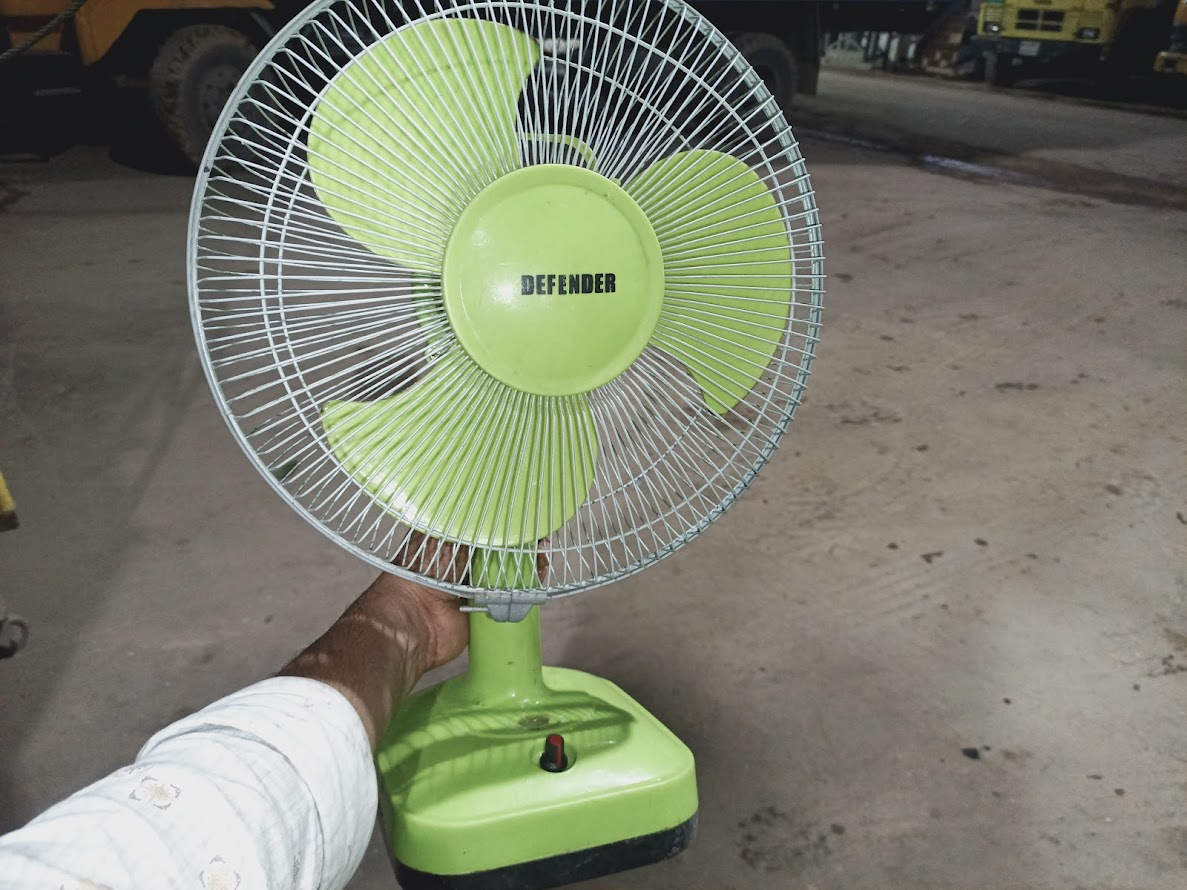

Now you can see that the fan is fully fitted, and I could not show it to you running because I had repaired this fan and immediately took it to the customer, and while I was on the road, I felt that I could not take any pictures while the fan was running, but it was working very nicely, and there is no doubt about it.

Subject	Description
Job Title	Fan Regulator Repair
Problem Type	Speed ​​Control Problem / Overheating
Old Parts	Bengali Regulator
New Parts	Chinese Electronic Regulator Board
Used Materials	Regulator Board, Wire, Solder
Job Status	Test Completed, Operational
