ToDo: Build your own tomato roof over your tomatos

in #todo7 years ago

Hi I'm looking for a good tomato roof over the tomatos and so I found any information about it in the internet will now bring it via my steemit account to YOU!

1.) You need 4 pieces of floor protective sleeve (l=29.52 inch x B=3.58 inch x B=3.58 inch) as here


You will find it here:

https://www.amazon.co.uk/Terracon-Terrace-Bearing-Adjustable-90X90X750-MM/dp/B016MCYW5I

2.) You need 2 pieces of larch untreated planed on 4 sides (l= 82.67 inch x B=3.54 inch x B= 3.54 inch) as here


for the front

You will find it form the locale Sawmill!

3.) You need 2 pieces of larch untreated planed on 4 sides (l= 78.74 inch x B=3.54 inch x B= 3.54 inch) as here


for the behind

You will find it form the locale Sawmill!

4.) Then you need 2 pieces of larch untreated planed on 4 sides (l= 24.40 inch x B=1.57 inch x B= 2.36 inch) as here


You will find it form the locale Sawmill!

5.) Then you need 2 pieces of larch untreated planed on 4 sides (l=111.02 inch x B=1.57 inch x B= 2.36 inch) as here


You will find it form the locale Sawmill!

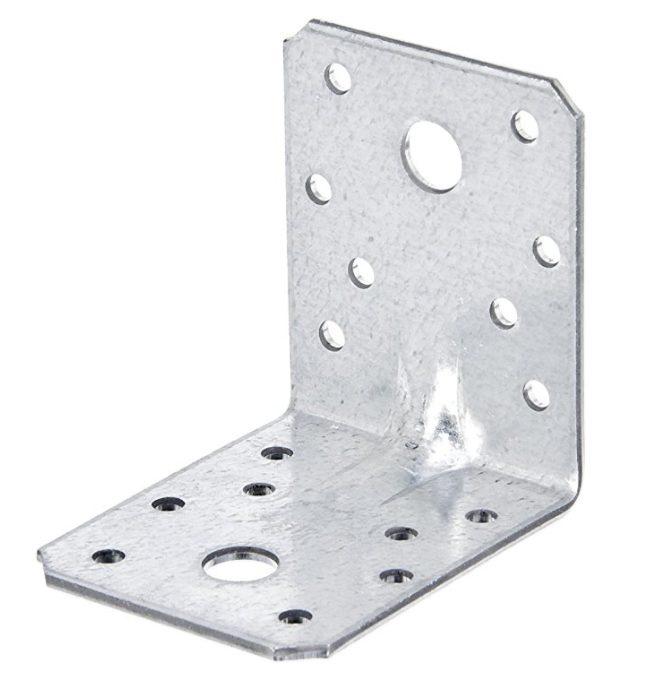

6.) You will need 8 pieces of angles to connect on the top every piece of larch untreated planed on 4 sides togehter with the the parts of point 1.) + 2.) + 3.) + 4.)


You will get it here:

https://www.amazon.com/gp/product/B008PRTW2C

The screws you will get here:


https://www.amazon.co.uk/Forgefix-POZI3530S-Stainless-Multi-Purpose-Countersunk/dp/B0072RSG0A/

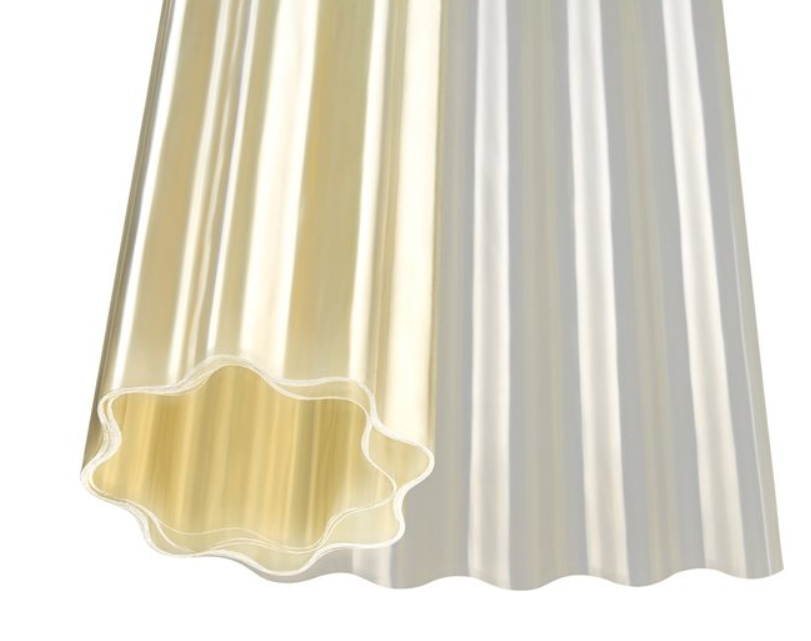

7.) Now you will need as roof a Polyester fiber web 76/18 nature clear side with 39.37 inch x 118.11 inch.


The parts of the polyester you will get here:

https://www.gutta.com/ch/produkte/bedachung-lichtdurchlaessig/profilplatten-wellplatten/polyester-wellbahnen-und-platten.html

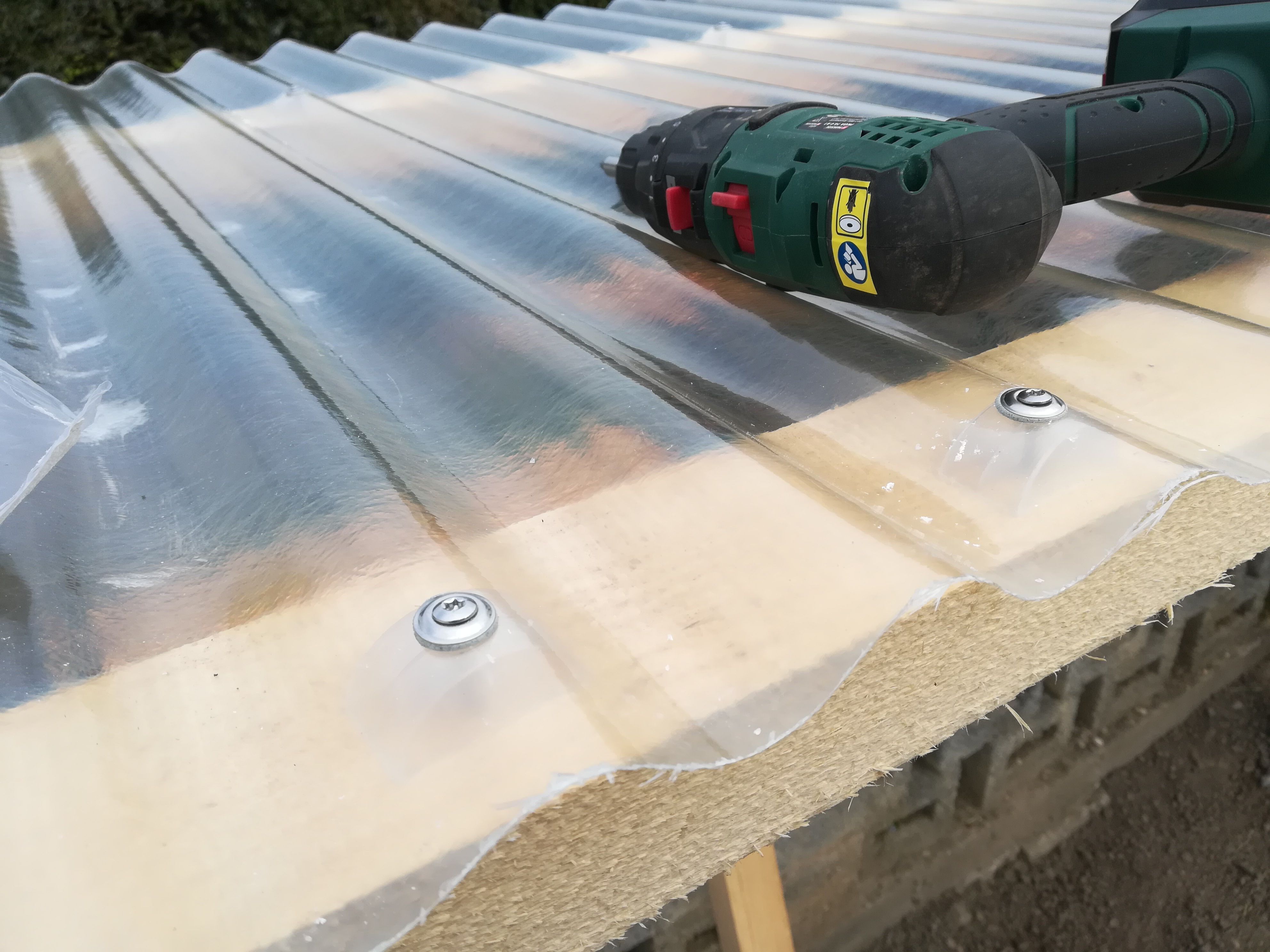

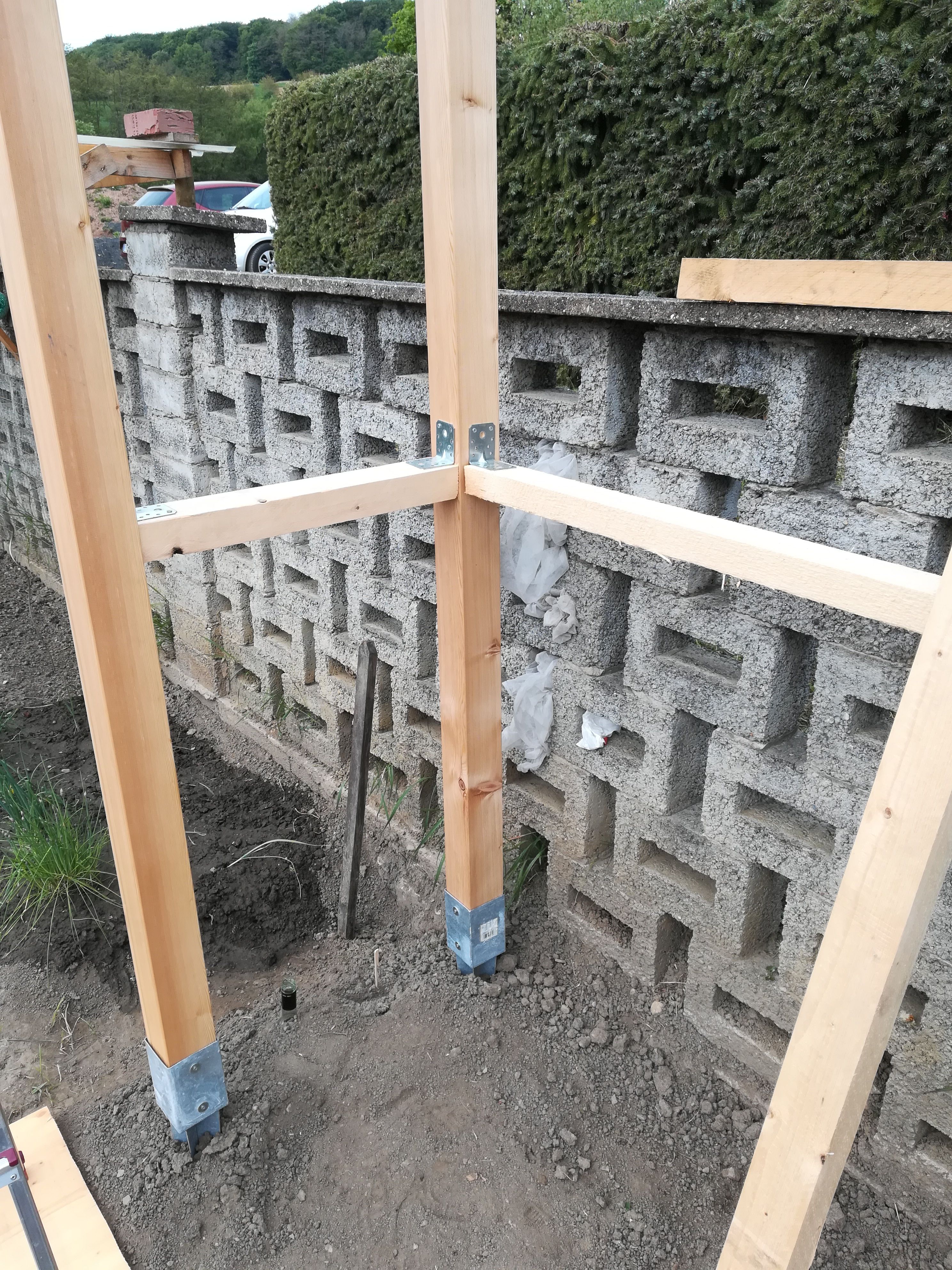

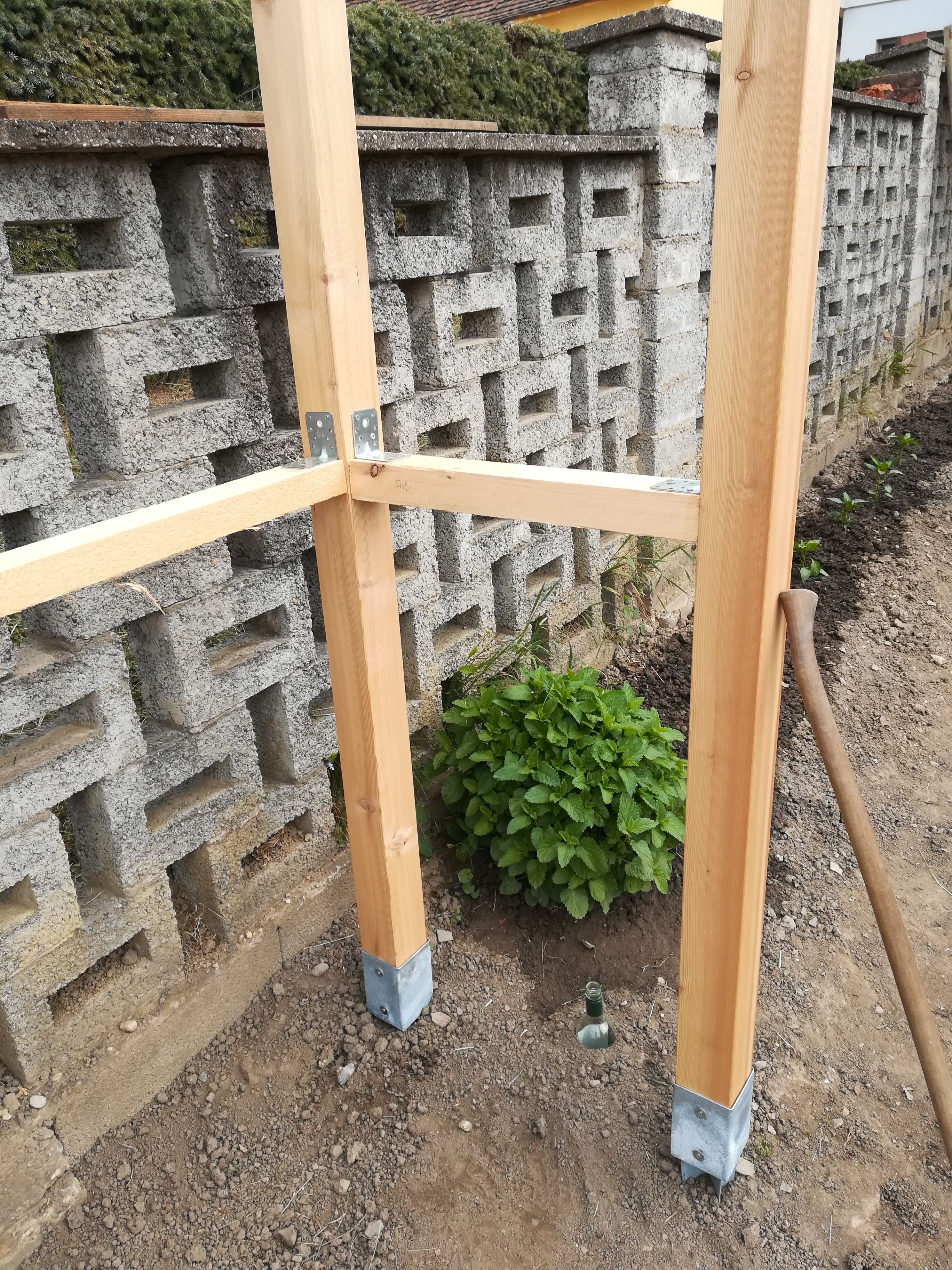

8.) Now a view of my produced roof:







I'm be very proud to bulit my own tomato roof!

I hope you will enjoy your own tomato roof too!
