Central school concept

stormofmort (56)in #design • 5 years ago

rejected cover.png

Just a very basic 6 storey school design for a friend. Had a few sketches and drafts to work on but I'm happy with the final result

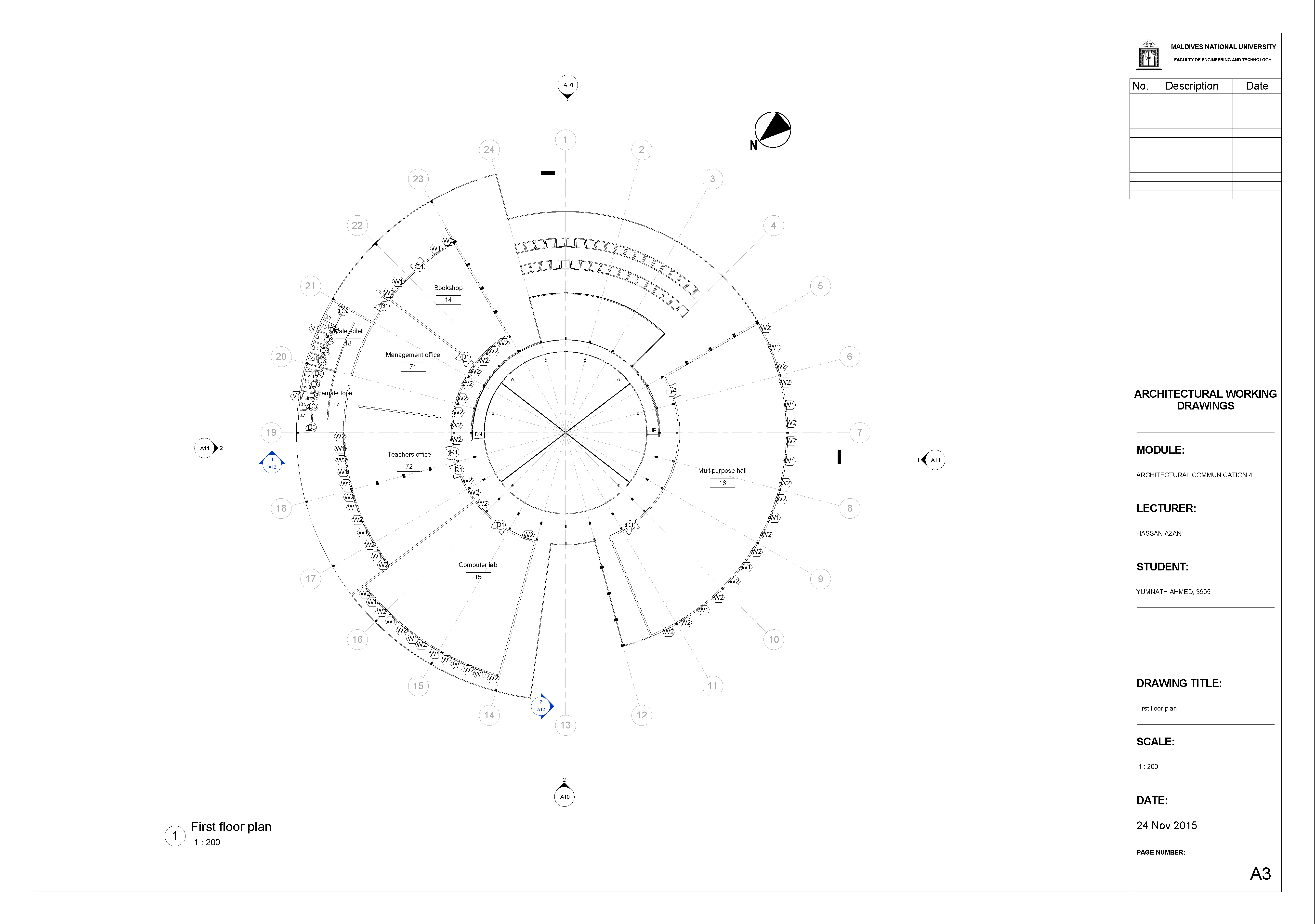

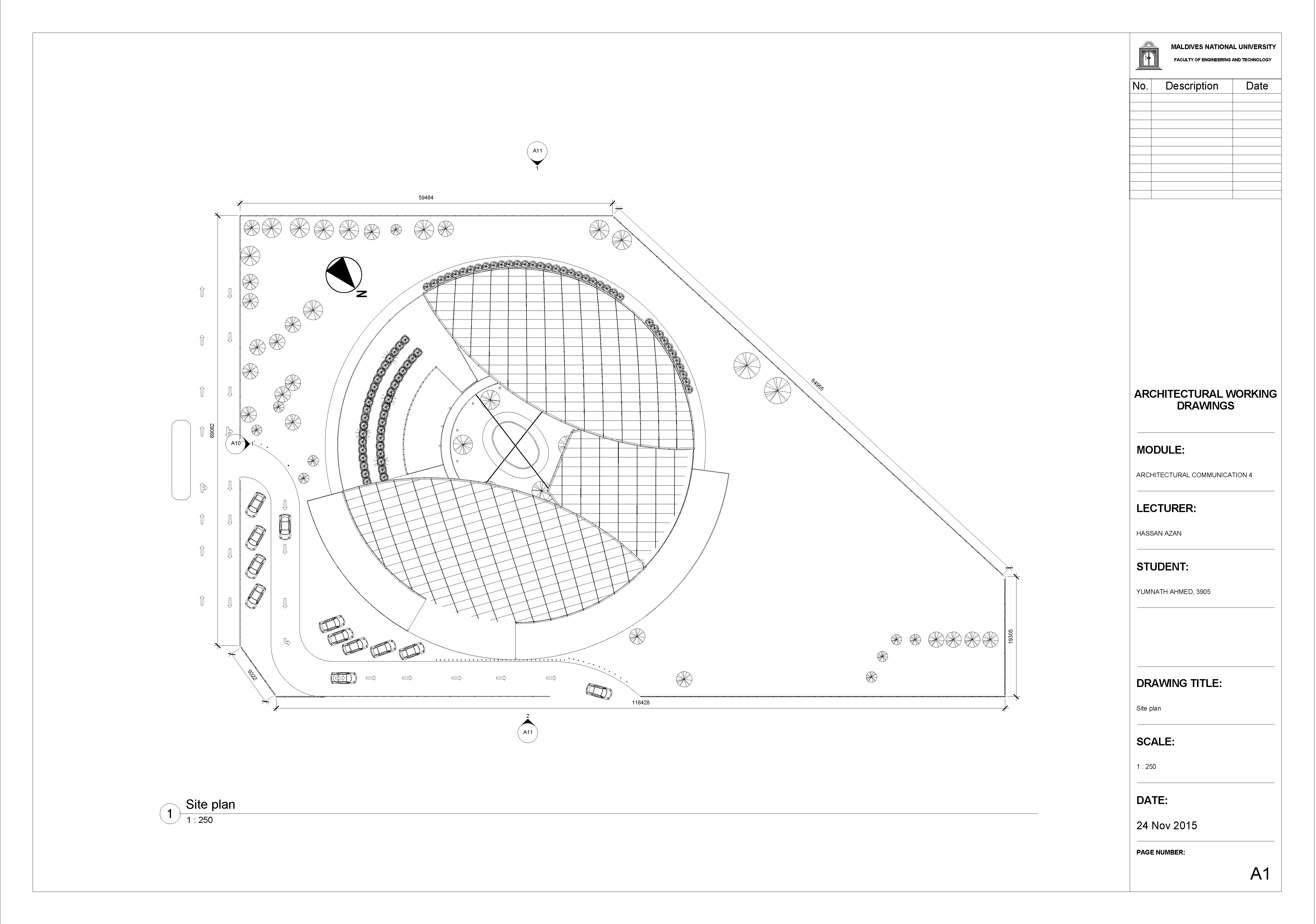

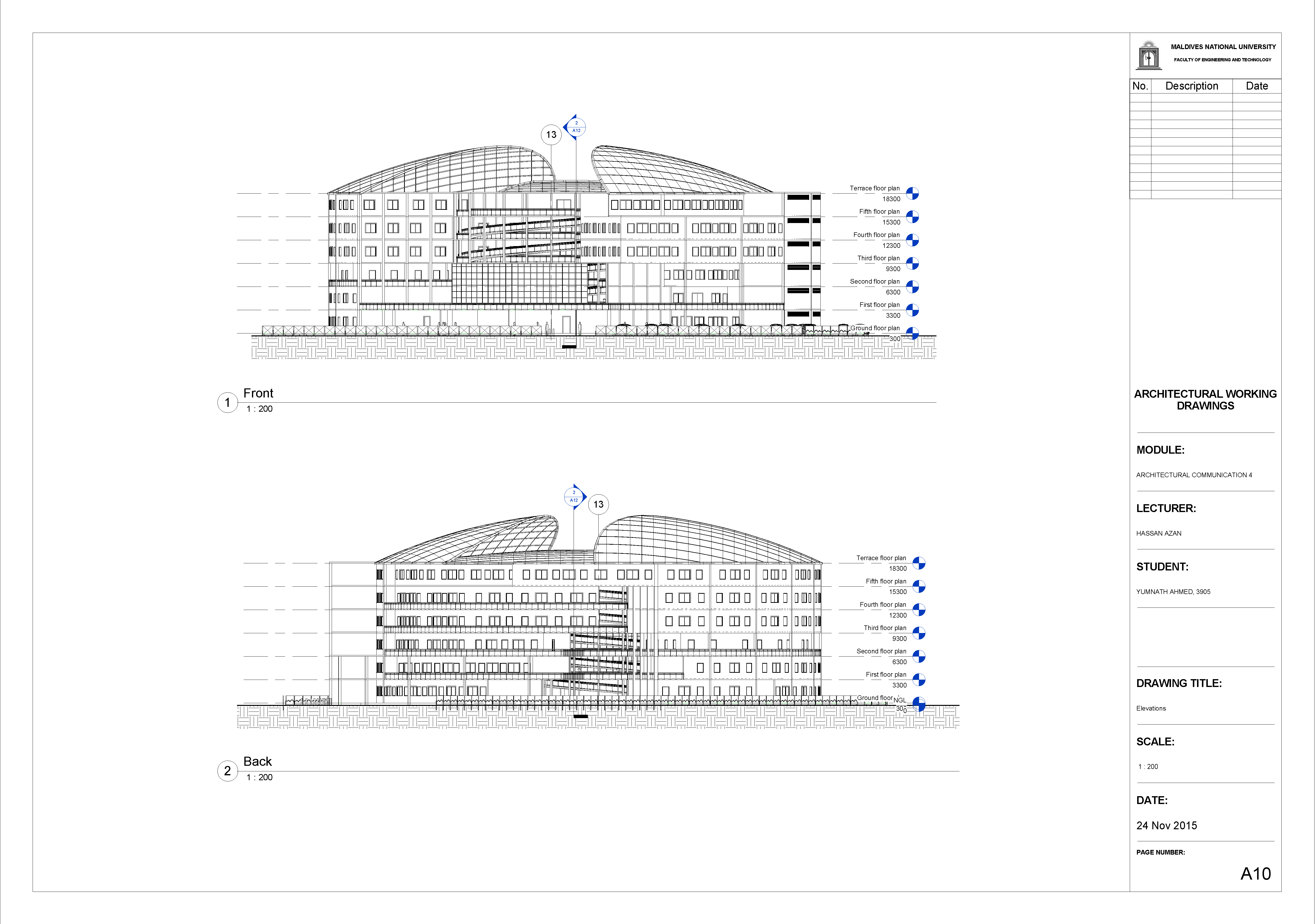

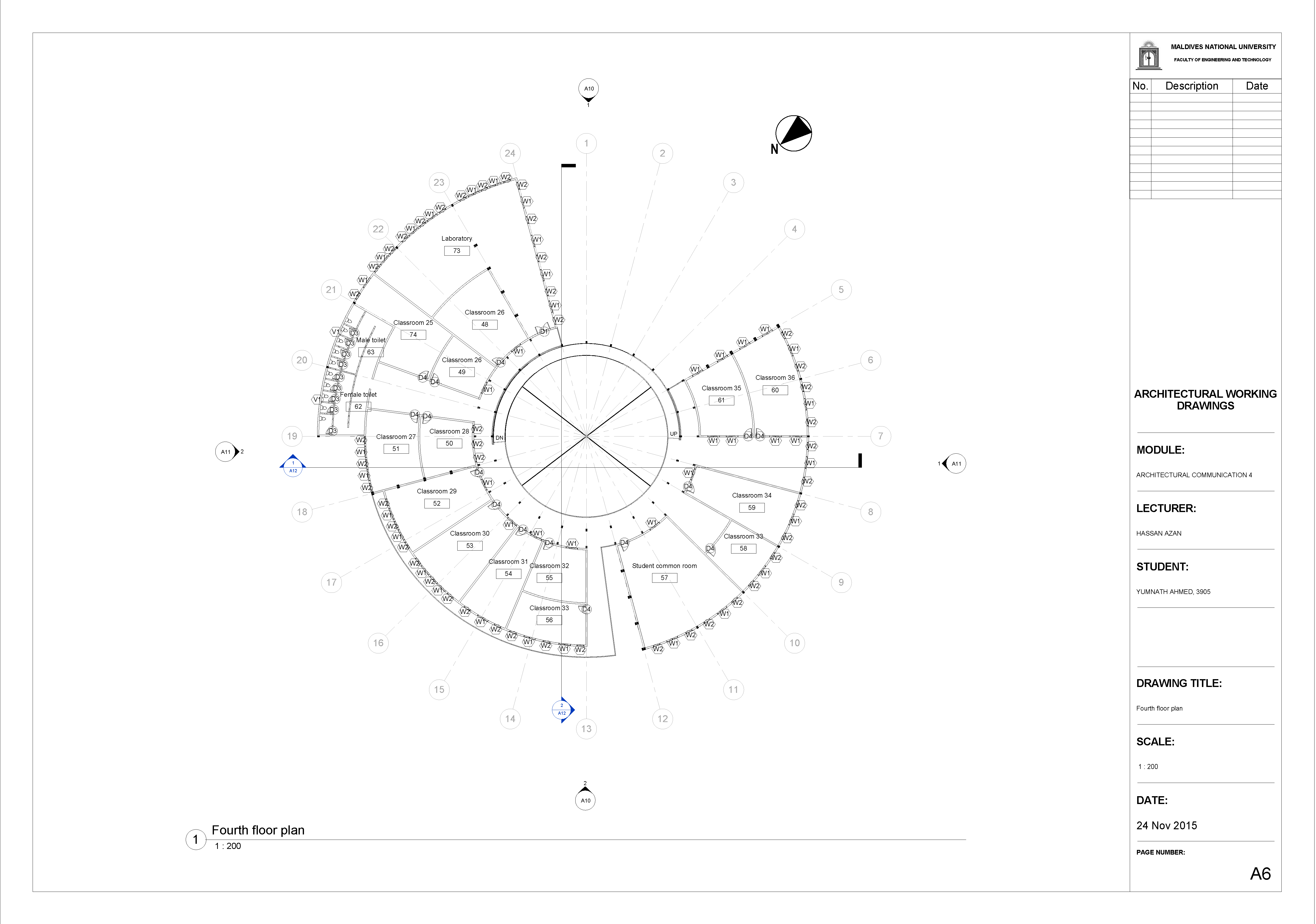

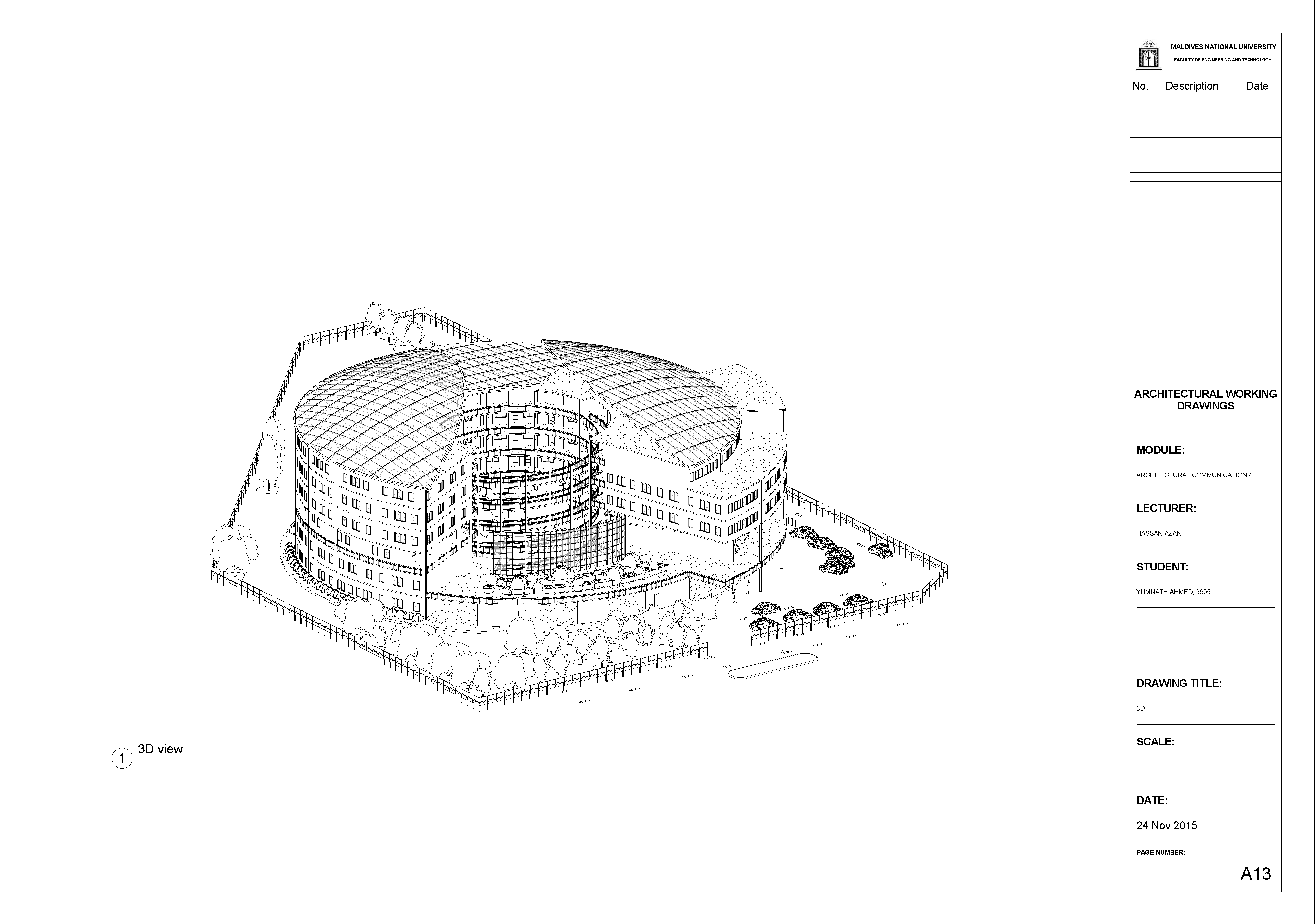

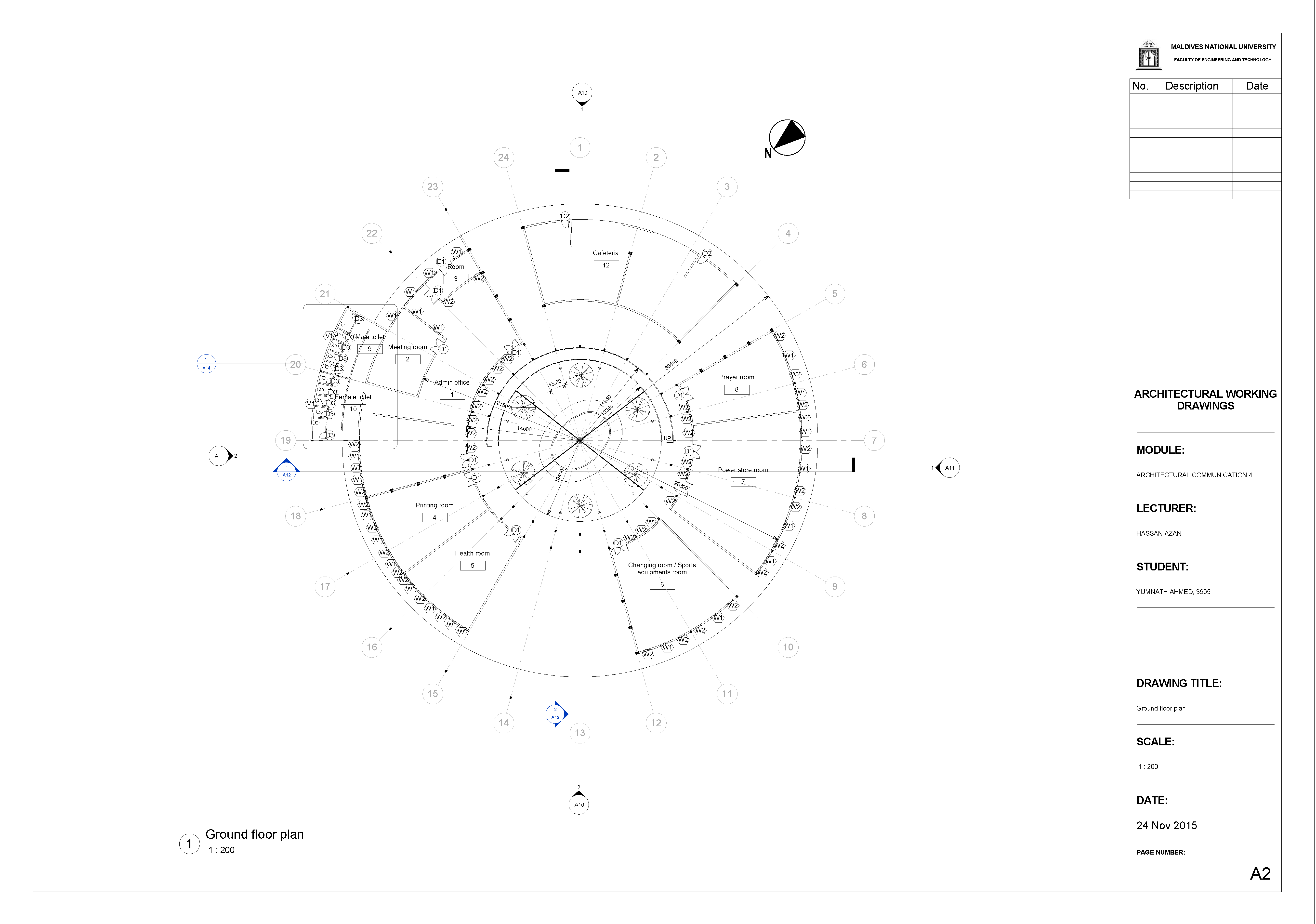

PDF rev 2_Page_02.png

PDF rev 2_Page_03.png

PDF rev 2_Page_04.png

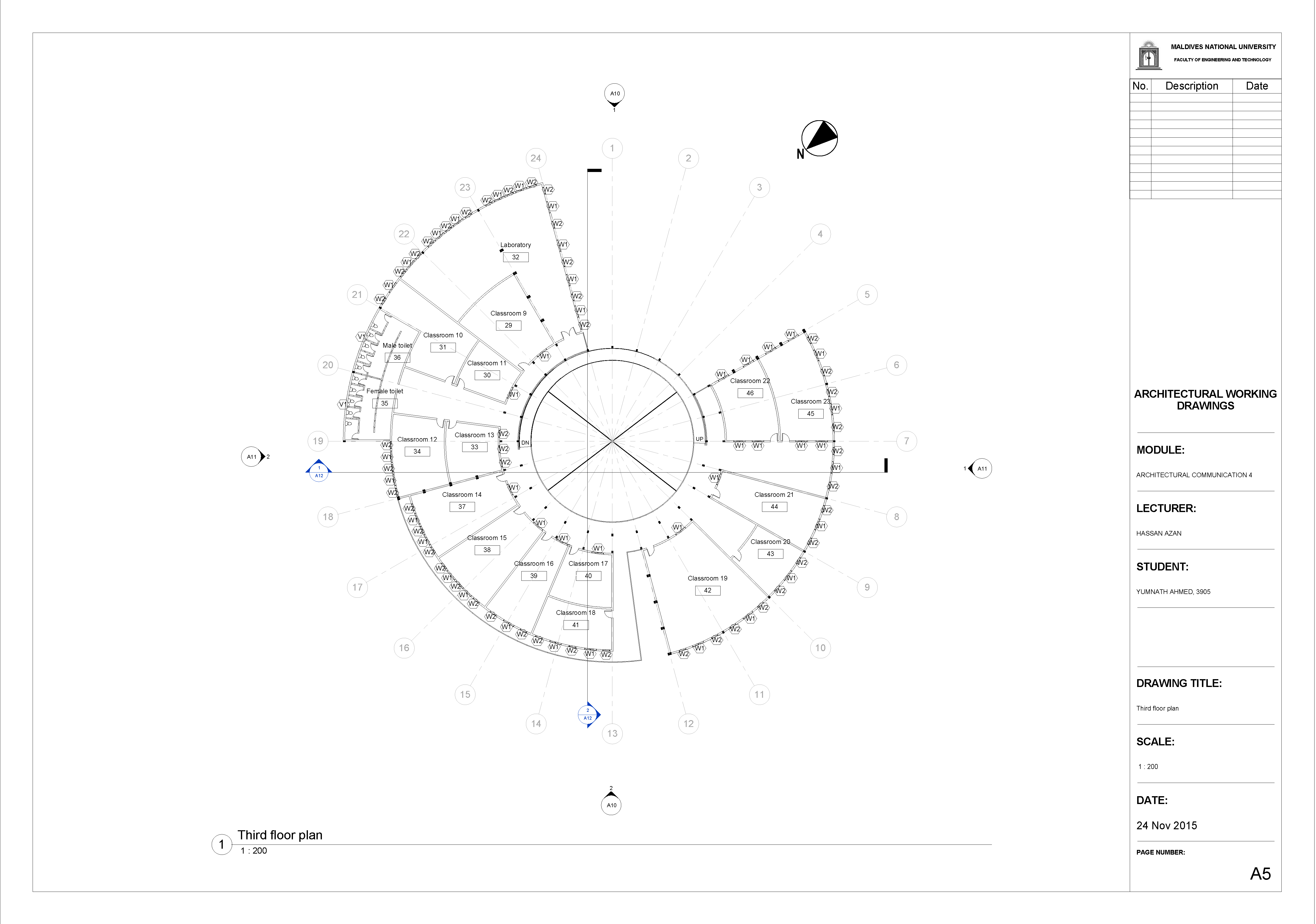

PDF rev 2_Page_06.png

PDF rev 2_Page_07.png

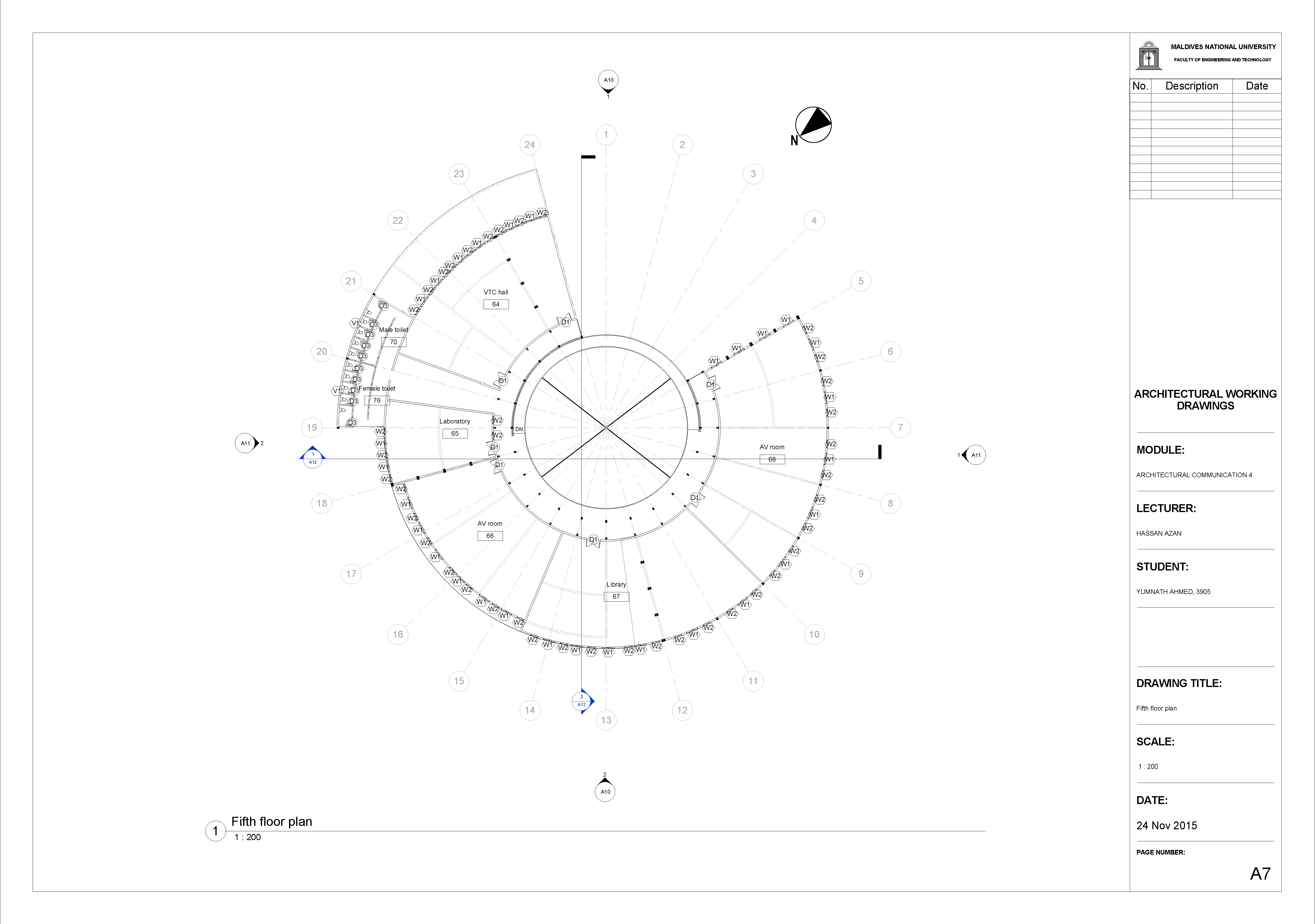

PDF rev 2_Page_08.png

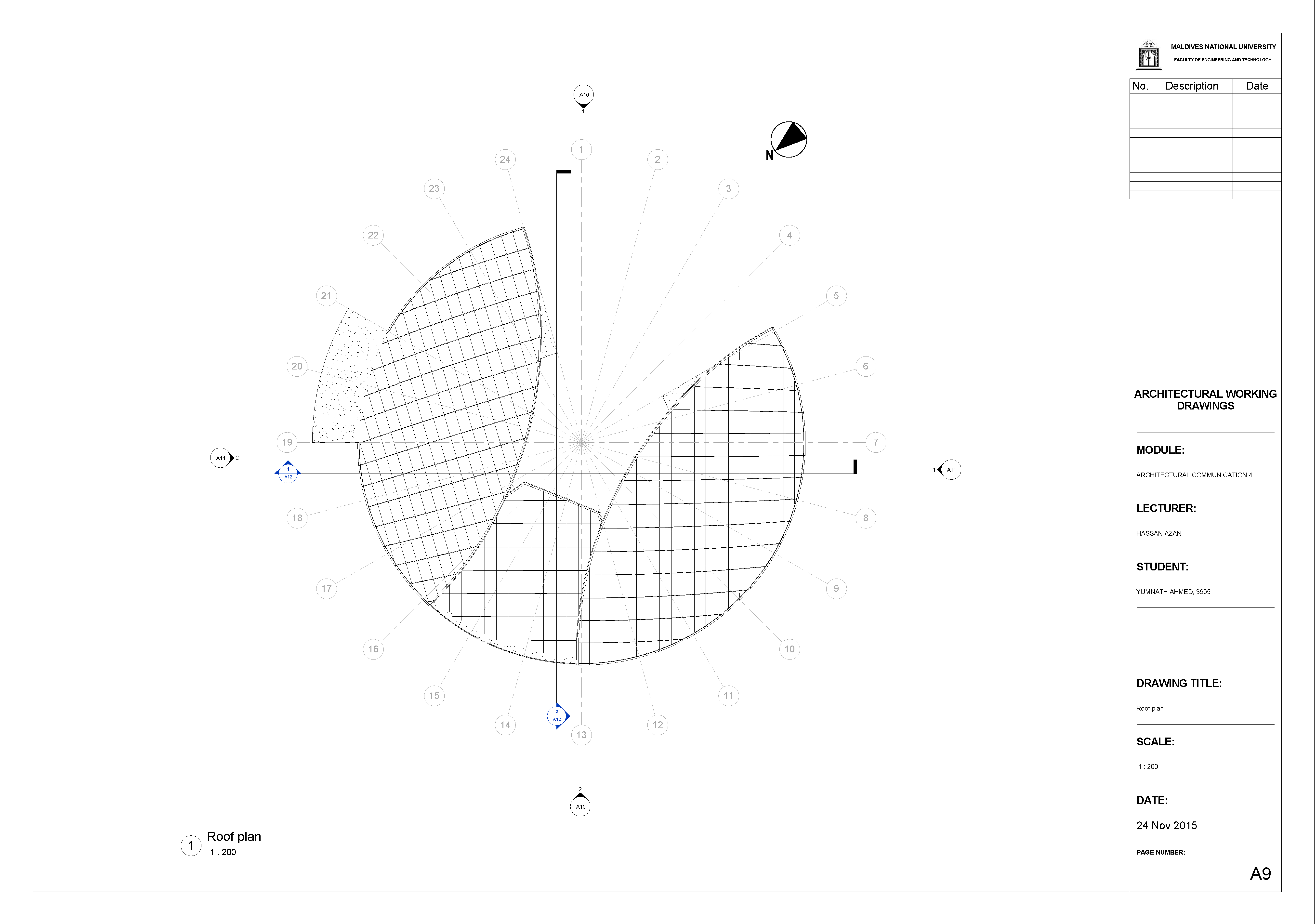

PDF rev 2_Page_10.png

PDF rev 2_Page_11.png

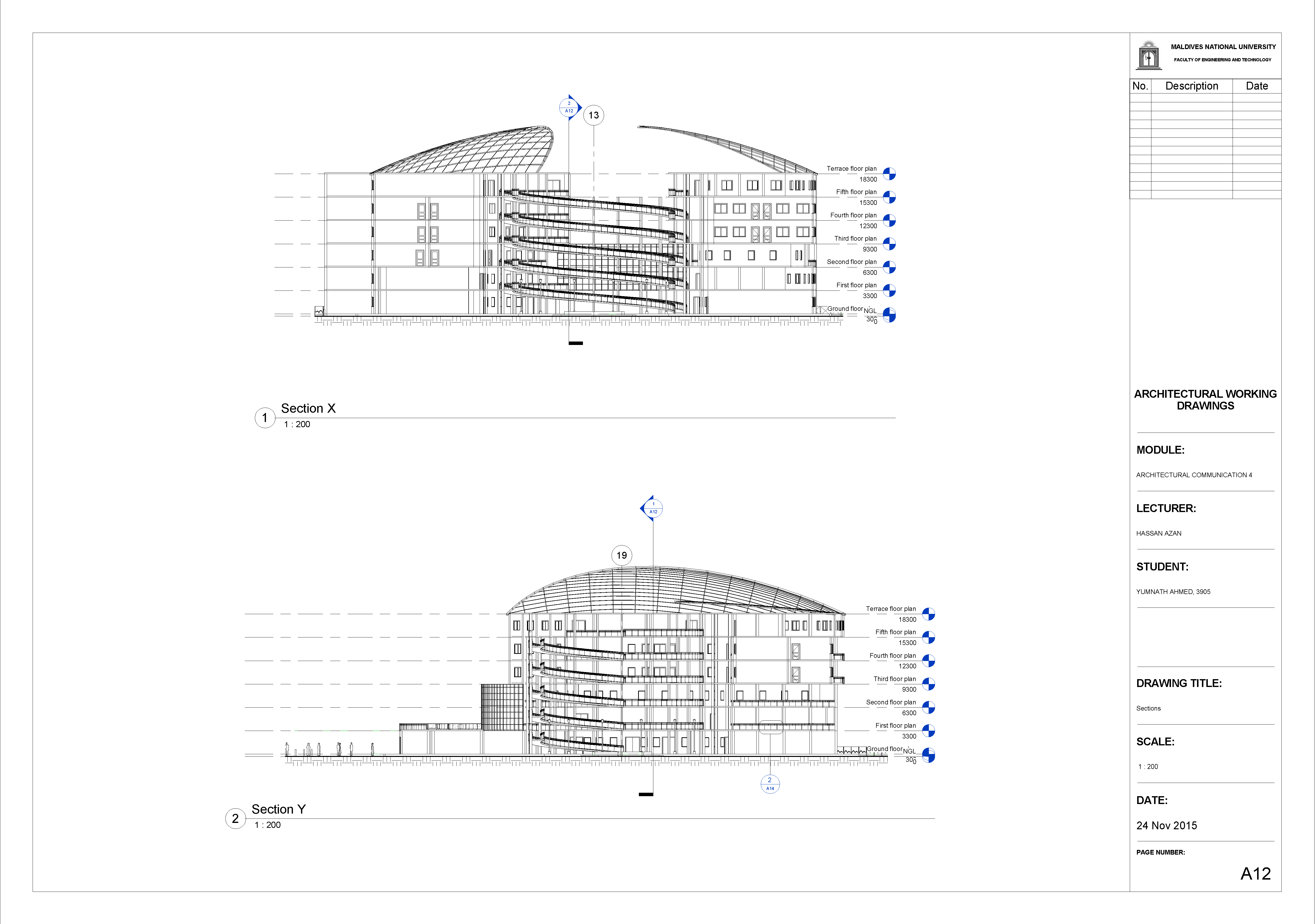

PDF rev 2_Page_13.png

PDF rev 2_Page_14.png

Some inside renders are also shown below

3D from above back.jpg

3D from above front.jpg

3D from above whole.jpg

3rd floor Balcony looking down.jpg

Front view.jpg

Section view with ramp.jpg

View of entrance.jpg
